=== [CARATTERISTICHE] ===
Altezza [mm] | 42 |
Diametro centraggio [mm] | 70 |
Diametro [mm] | 280 |
N fori | 5 |
per n articolo | 142.496 |
Peso [kg] | 6,48 |
Spessore disco freno [mm] | 25 |
Spessore min. [mm] | 22 |
Tipo disco freno | Autoventilato |
=== [CODICE ORIGINALE] ===
OPEL | 569060 |
OPEL | 90539466 |
OPEL | 9117678 |
=== [APPLICAZIONE] ===
Modello veicolo | Immatricolazione | Kw | Cv |
---|---|---|---|
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 1.6 16V | 1998/02 - 2005/01 | 74Kw | 101cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 1.6 | 1998/02 - 2000/09 | 55Kw | 75cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 1.6 | 2000/09 - 2005/01 | 62Kw | 84cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 1.6 | 2002/12 - 2009/12 | 76Kw | 103cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 1.8 16V | 1998/02 - 2000/09 | 85Kw | 116cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 1.8 16V | 2000/09 - 2005/01 | 92Kw | 125cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 2.0 16V | 1998/02 - 2005/01 | 100Kw | 136cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 2.0 DI | 1998/02 - 2005/01 | 60Kw | 82cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 2.0 DTI 16V | 1999/08 - 2005/01 | 74Kw | 101cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 2.2 16V | 2000/06 - 2005/01 | 108Kw | 147cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 2.2 DTI | 2002/09 - 2005/01 | 86Kw | 117cv |
OPEL ASTRA G 2 volumi /Coda spiovente (F48_, F08_) 2.2 DTI | 2002/09 - 2005/01 | 92Kw | 125cv |
OPEL ASTRA G Cabriolet (F67) 1.8 16V | 2001/03 - 2005/10 | 92Kw | 125cv |
OPEL ASTRA G Cabriolet (F67) 2.2 16V | 2001/03 - 2005/10 | 108Kw | 147cv |
OPEL ASTRA G Cabriolet (F67) 2.2 DTI | 2002/09 - 2005/10 | 92Kw | 125cv |
OPEL ASTRA G Coupe (F07_) 1.6 16V | 2000/03 - 2005/05 | 74Kw | 101cv |
OPEL ASTRA G Coupe (F07_) 1.6 16V | 2000/03 - 2005/05 | 76Kw | 103cv |
OPEL ASTRA G Coupe (F07_) 1.8 16V | 2000/03 - 2000/10 | 85Kw | 116cv |
OPEL ASTRA G Coupe (F07_) 1.8 16V | 2000/09 - 2005/05 | 92Kw | 125cv |
OPEL ASTRA G Coupe (F07_) 2.2 16V | 2000/09 - 2005/05 | 108Kw | 147cv |
OPEL ASTRA G Coupe (F07_) 2.2 DTI | 2002/09 - 2005/05 | 92Kw | 125cv |
OPEL ASTRA G Delvan (F70) 1.6 | 1999/01 - 2000/09 | 55Kw | 75cv |
OPEL ASTRA G Delvan (F70) 1.6 | 2000/09 - 2005/04 | 62Kw | 84cv |
OPEL ASTRA G Delvan (F70) 1.6 | 2004/10 - 2005/04 | 76Kw | 103cv |
OPEL ASTRA G Delvan (F70) 2.0 DI | 1999/01 - 2005/04 | 60Kw | 82cv |
OPEL ASTRA G Station wagon (F35_) 1.6 16V | 1998/02 - 2004/07 | 74Kw | 101cv |
OPEL ASTRA G Station wagon (F35_) 1.6 CNG | 2003/03 - 2004/07 | 71Kw | 97cv |
OPEL ASTRA G Station wagon (F35_) 1.6 | 1998/02 - 2000/09 | 55Kw | 75cv |
OPEL ASTRA G Station wagon (F35_) 1.6 | 2000/09 - 2004/07 | 62Kw | 84cv |
OPEL ASTRA G Station wagon (F35_) 1.6 | 2002/12 - 2009/07 | 76Kw | 103cv |
OPEL ASTRA G Station wagon (F35_) 1.8 16V | 1998/02 - 2000/09 | 85Kw | 116cv |
OPEL ASTRA G Station wagon (F35_) 1.8 16V | 2000/09 - 2004/07 | 92Kw | 125cv |
OPEL ASTRA G Station wagon (F35_) 2.0 16V | 1998/02 - 2004/07 | 100Kw | 136cv |
OPEL ASTRA G Station wagon (F35_) 2.0 DI | 1998/02 - 2004/07 | 60Kw | 82cv |
OPEL ASTRA G Station wagon (F35_) 2.0 DTI 16V | 1999/08 - 2004/07 | 74Kw | 101cv |
OPEL ASTRA G Station wagon (F35_) 2.2 16V | 2001/03 - 2004/07 | 108Kw | 147cv |
OPEL ASTRA G Station wagon (F35_) 2.2 DTI | 2002/09 - 2004/07 | 86Kw | 117cv |
OPEL ASTRA G Station wagon (F35_) 2.2 DTI | 2002/09 - 2004/07 | 92Kw | 125cv |
OPEL ASTRA G Tre volumi (F69_) 1.6 16V | 1998/09 - 2005/01 | 74Kw | 101cv |
OPEL ASTRA G Tre volumi (F69_) 1.6 | 1998/09 - 2000/09 | 55Kw | 75cv |
OPEL ASTRA G Tre volumi (F69_) 1.6 | 2000/09 - 2005/01 | 62Kw | 84cv |
OPEL ASTRA G Tre volumi (F69_) 1.6 | 2002/12 - 2009/12 | 76Kw | 103cv |
OPEL ASTRA G Tre volumi (F69_) 1.8 16V | 1998/09 - 2000/09 | 85Kw | 116cv |
OPEL ASTRA G Tre volumi (F69_) 1.8 16V | 2000/06 - 2005/01 | 92Kw | 125cv |
OPEL ASTRA G Tre volumi (F69_) 2.0 16V | 1998/09 - 2005/01 | 100Kw | 136cv |
OPEL ASTRA G Tre volumi (F69_) 2.0 DI | 1998/09 - 2005/01 | 60Kw | 82cv |
OPEL ASTRA G Tre volumi (F69_) 2.0 DTI 16V | 1999/08 - 2005/01 | 74Kw | 101cv |
OPEL ASTRA G Tre volumi (F69_) 2.2 16V | 2001/03 - 2005/01 | 108Kw | 147cv |
OPEL ASTRA G Tre volumi (F69_) 2.2 DTI | 2002/09 - 2005/01 | 86Kw | 117cv |
OPEL ASTRA G Tre volumi (F69_) 2.2 DTI | 2002/09 - 2005/01 | 92Kw | 125cv |
OPEL ASTRA H (L48) 1.2 | 2005/08 - 2010/10 | 59Kw | 80cv |
OPEL ASTRA H (L48) 1.3 CDTI | 2005/08 - 2010/10 | 66Kw | 90cv |
OPEL ASTRA H (L48) 1.4 LPG | 2009/08 - 2010/10 | 66Kw | 90cv |
OPEL ASTRA H (L48) 1.4 | 2004/03 - 2010/10 | 66Kw | 90cv |
OPEL ASTRA H (L48) 1.4 | 2004/04 - 2004/10 | 55Kw | 75cv |
OPEL ASTRA H (L48) 1.6 | 2004/03 - 2010/10 | 77Kw | 105cv |
OPEL ASTRA H (L48) 1.6 | 2006/12 - 2014/05 | 85Kw | 116cv |
OPEL ASTRA H (L48) 1.7 CDTI | 2004/03 - 2010/10 | 59Kw | 80cv |
OPEL ASTRA H (L48) 1.7 CDTI | 2004/03 - 2010/10 | 74Kw | 100cv |
OPEL ASTRA H (L48) 1.7 CDTI | 2007/02 - 2014/05 | 81Kw | 110cv |
OPEL ASTRA H (L48) 1.8 | 2004/03 - 2010/10 | 92Kw | 125cv |
OPEL ASTRA H (L48) 1.8 | 2006/01 - 2010/10 | 103Kw | 140cv |
OPEL ASTRA H Furgonato (L70) 1.3 CDTI | 2005/08 - 2010/10 | 66Kw | 90cv |
OPEL ASTRA H Furgonato (L70) 1.7 CDTI | 2004/03 - 2010/10 | 74Kw | 101cv |
OPEL ASTRA H Furgonato (L70) 1.7 CDTI | 2007/02 - 2010/10 | 81Kw | 110cv |
OPEL ASTRA H GTC (L08) 1.2 | 2005/08 - 2010/10 | 59Kw | 80cv |
OPEL ASTRA H GTC (L08) 1.3 CDTI | 2005/04 - 2010/10 | 66Kw | 90cv |
OPEL ASTRA H GTC (L08) 1.4 | 2005/03 - 2010/10 | 55Kw | 75cv |
OPEL ASTRA H GTC (L08) 1.4 | 2005/03 - 2010/10 | 66Kw | 90cv |
OPEL ASTRA H GTC (L08) 1.6 | 2005/03 - 2010/10 | 77Kw | 105cv |
OPEL ASTRA H GTC (L08) 1.6 | 2006/12 - 2010/10 | 85Kw | 116cv |
OPEL ASTRA H GTC (L08) 1.7 CDTI | 2005/03 - 2010/10 | 59Kw | 80cv |
OPEL ASTRA H GTC (L08) 1.7 CDTi | 2005/03 - 2010/10 | 74Kw | 101cv |
OPEL ASTRA H GTC (L08) 1.7 CDTI | 2007/02 - 2010/10 | 81Kw | 110cv |
OPEL ASTRA H GTC (L08) 1.8 | 2005/03 - 2010/10 | 92Kw | 125cv |
OPEL ASTRA H GTC (L08) 1.8 | 2006/01 - 2010/10 | 103Kw | 140cv |
OPEL ASTRA H Station wagon (L35) 1.3 CDTI | 2005/08 - 2010/10 | 66Kw | 90cv |
OPEL ASTRA H Station wagon (L35) 1.4 LPG | 2009/08 - 2010/10 | 66Kw | 90cv |
OPEL ASTRA H Station wagon (L35) 1.4 | 2004/08 - 2010/10 | 55Kw | 75cv |
OPEL ASTRA H Station wagon (L35) 1.4 | 2004/08 - 2010/10 | 66Kw | 90cv |
OPEL ASTRA H Station wagon (L35) 1.6 LPG | 2009/08 - 2010/10 | 85Kw | 116cv |
OPEL ASTRA H Station wagon (L35) 1.6 | 2004/08 - 2010/10 | 77Kw | 105cv |
OPEL ASTRA H Station wagon (L35) 1.6 | 2006/12 - 2014/05 | 85Kw | 116cv |
OPEL ASTRA H Station wagon (L35) 1.7 CDTI | 2004/08 - 2010/10 | 59Kw | 80cv |
OPEL ASTRA H Station wagon (L35) 1.7 CDTI | 2004/08 - 2010/10 | 74Kw | 101cv |
OPEL ASTRA H Station wagon (L35) 1.7 CDTI | 2007/02 - 2014/05 | 81Kw | 110cv |
OPEL ASTRA H Station wagon (L35) 1.8 | 2004/08 - 2010/10 | 92Kw | 125cv |
OPEL ASTRA H Station wagon (L35) 1.8 | 2005/08 - 2010/10 | 103Kw | 140cv |
OPEL ASTRA H Tre volumi (L69) 1.3 CDTi | 2007/02 - 2010/10 | 66Kw | 90cv |
OPEL ASTRA H Tre volumi (L69) 1.6 | 2007/02 - 2014/05 | 85Kw | 116cv |
OPEL ASTRA H Tre volumi (L69) 1.7 CDTi | 2007/02 - 2010/10 | 74Kw | 101cv |
OPEL ASTRA H Tre volumi (L69) 1.7 CDTi | 2007/02 - 2014/05 | 81Kw | 110cv |
OPEL ASTRA H Tre volumi (L69) 1.8 | 2007/02 - 2010/10 | 103Kw | 140cv |
OPEL ASTRA H TwinTop (L67) 1.6 | 2005/09 - 2010/10 | 77Kw | 105cv |
OPEL ASTRA H TwinTop (L67) 1.6 | 2006/12 - 2010/10 | 85Kw | 116cv |
OPEL ASTRA H TwinTop (L67) 1.8 | 2005/09 - 2010/10 | 103Kw | 140cv |
OPEL ASTRA H TwinTop (L67) 1.8 | 2005/09 - 2010/10 | 92Kw | 125cv |
OPEL COMBO Cassone / Furgonato / Promiscuo 1.7 CDTI 16V | 2004/12 - | 74Kw | 101cv |
OPEL COMBO Tour 1.7 CDTI 16V | 2004/12 - | 74Kw | 101cv |
OPEL CORSA C (F08, F68) 1.7 CDTI | 2003/06 - 2009/12 | 74Kw | 100cv |
OPEL CORSA C Furgonato (F08, W5L) 1.7 CDTi | 2003/08 - | 74Kw | 101cv |
OPEL MERIVA 1.3 CDTI | 2003/09 - 2010/05 | 55Kw | 75cv |
OPEL MERIVA 1.3 CDTI | 2005/04 - 2010/05 | 51Kw | 69cv |
OPEL MERIVA 1.4 16V Twinport LPG | 2004/07 - 2010/05 | 66Kw | 90cv |
OPEL MERIVA 1.4 16V Twinport | 2004/07 - 2010/05 | 66Kw | 90cv |
OPEL MERIVA 1.6 16V | 2003/05 - 2006/01 | 74Kw | 100cv |
OPEL MERIVA 1.6 | 2003/05 - 2010/05 | 64Kw | 87cv |
OPEL MERIVA 1.6 | 2006/01 - 2010/05 | 77Kw | 105cv |
OPEL MERIVA 1.7 CDTI | 2003/09 - 2010/05 | 74Kw | 100cv |
OPEL MERIVA 1.7 CDTI | 2006/09 - 2010/05 | 92Kw | 125cv |
OPEL MERIVA 1.7 DTI | 2003/09 - 2010/05 | 55Kw | 75cv |
OPEL MERIVA 1.8 | 2003/05 - 2010/05 | 92Kw | 125cv |
OPEL MERIVA B 1.3 CDTI | 2010/06 - | 55Kw | 75cv |
OPEL MERIVA B 1.3 CDTI | 2010/06 - | 70Kw | 95cv |
OPEL MERIVA B 1.4 LPG | 2011/06 - | 88Kw | 120cv |
OPEL MERIVA B 1.4 | 2010/06 - | 74Kw | 100cv |
OPEL MERIVA B 1.4 | 2010/06 - | 88Kw | 120cv |
OPEL MERIVA B 1.7 CDTI | 2010/06 - | 74Kw | 100cv |
OPEL MERIVA B 1.7 CDTI | 2010/06 - | 81Kw | 110cv |
OPEL MERIVA B 1.7 CDTI | 2010/06 - | 96Kw | 131cv |
OPEL ZAFIRA A (F75_) 1.6 16V | 1999/04 - 2005/06 | 74Kw | 101cv |
OPEL ZAFIRA A (F75_) 1.6 CNG | 2001/09 - 2005/06 | 71Kw | 97cv |
OPEL ZAFIRA A (F75_) 1.8 16V | 1999/04 - 2000/09 | 85Kw | 116cv |
OPEL ZAFIRA A (F75_) 1.8 16V | 2000/09 - 2005/06 | 92Kw | 125cv |
OPEL ZAFIRA A (F75_) 2.0 DI 16V | 1999/07 - 2005/06 | 60Kw | 82cv |
OPEL ZAFIRA A (F75_) 2.0 DI | 1999/07 - 2000/06 | 63Kw | 86cv |
OPEL ZAFIRA A (F75_) 2.0 DTI 16V | 2000/09 - 2005/06 | 74Kw | 101cv |
OPEL ZAFIRA A (F75_) 2.2 16V | 2000/09 - 2005/06 | 108Kw | 147cv |
OPEL ZAFIRA A (F75_) 2.2 DTI 16V | 2002/01 - 2005/06 | 86Kw | 117cv |
OPEL ZAFIRA A (F75_) 2.2 DTI 16V | 2002/01 - 2005/06 | 92Kw | 125cv |
OPEL ZAFIRA B (A05) 1.6 | 2005/07 - | 77Kw | 105cv |
OPEL ZAFIRA B (A05) 1.6 | 2008/01 - | 85Kw | 115cv |
OPEL ZAFIRA B (A05) 1.8 | 2005/07 - | 103Kw | 140cv |
OPEL ZAFIRA B (A05) 1.8 | 2013/06 - | 88Kw | 120cv |
OPEL ZAFIRA B Van 1.8 | 2005/07 - | 103Kw | 140cv |
VAUXHALL ASTRA Mk IV (G) 2 volumi /Coda spiovente 1.6 16V | 1998/02 - 2005/05 | 74Kw | 101cv |
VAUXHALL ASTRA Mk IV (G) 2 volumi /Coda spiovente 1.6 Dualfuel | 2000/07 - 2005/05 | 62Kw | 86cv |
VAUXHALL ASTRA Mk IV (G) 2 volumi /Coda spiovente 1.6 Dualfuel | 2002/09 - 2005/05 | 63Kw | 85cv |
VAUXHALL ASTRA Mk IV (G) 2 volumi /Coda spiovente 1.6 | 1998/02 - 2000/09 | 55Kw | 75cv |
VAUXHALL ASTRA Mk IV (G) 2 volumi /Coda spiovente 1.6 | 2000/09 - 2005/05 | 62Kw | 84cv |
VAUXHALL ASTRA Mk IV (G) 2 volumi /Coda spiovente 1.8 16V Dualfuel | 2002/09 - 2005/05 | 87Kw | 118cv |
OORD-A0597
Nuovo

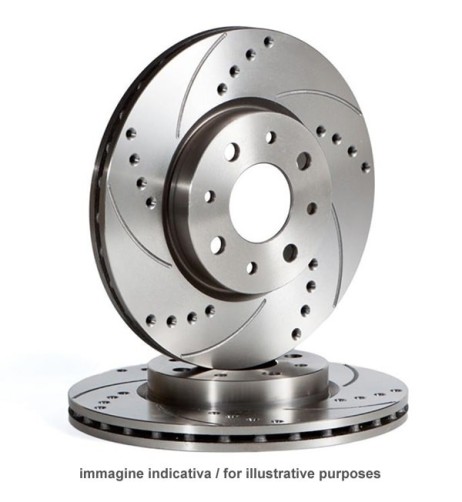

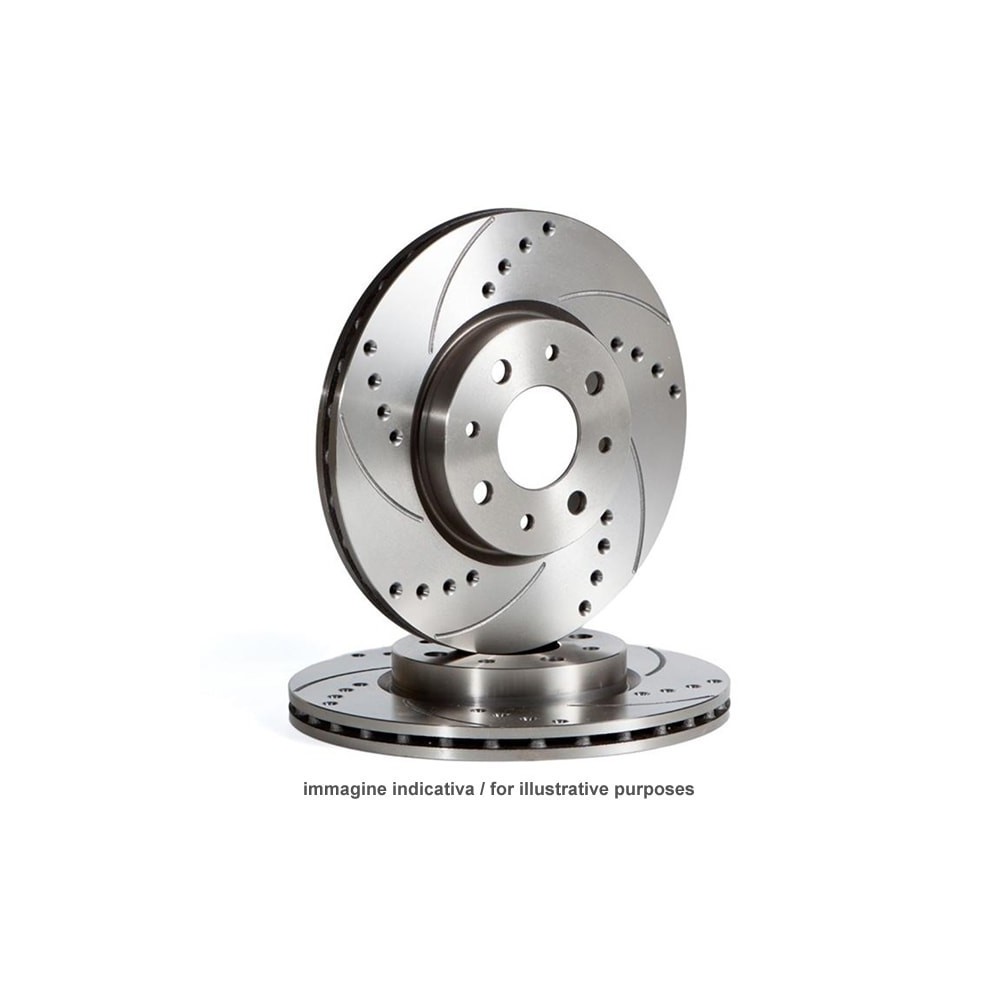

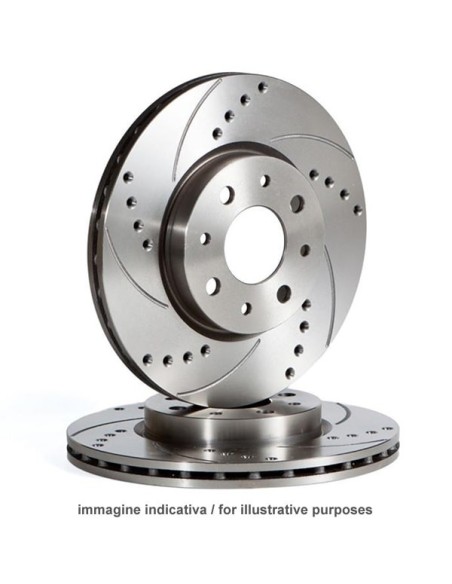

OORDAL è un marchio italiano specializzato nella lavorazione e realizzazione di componenti di alta qualità ad uso sportivo e custom. Tra i prodotti più conosciuti ed apprezzati sono presenti i distanziali ruote per allargamento o cambio interasse e i dischi freno sportivi baffati e forati con misure e caratteristiche equivalenti a quelli di primo impianto.
